Timloc
Timloc Airtight Access Panels
£9.75 INC. VAT
£8.13 EX. VAT
£8.13 EX. VAT

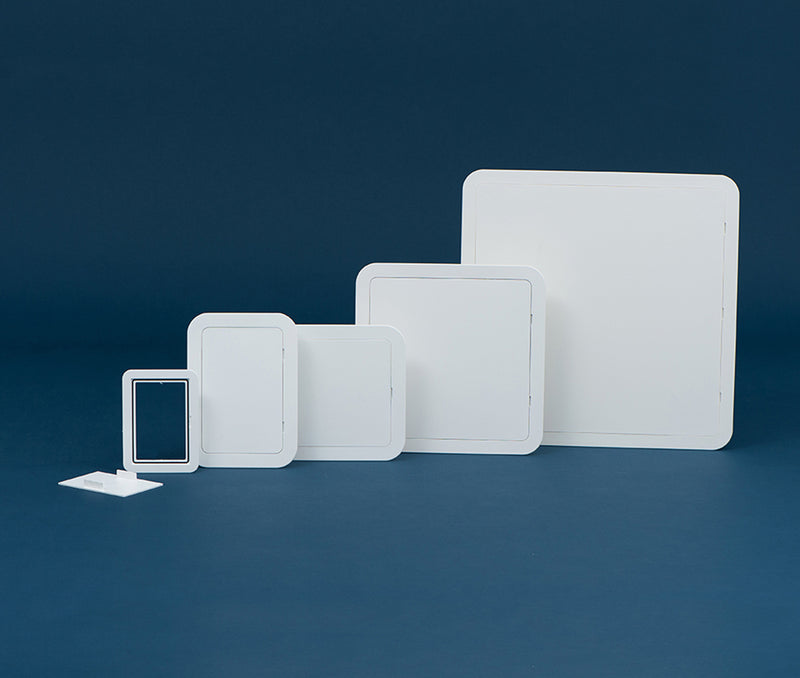

Airtight Plastic Access Panels
| Frame fitting size | Clear opening size | Overall panel and frame size | Door type | Product code |
|---|---|---|---|---|

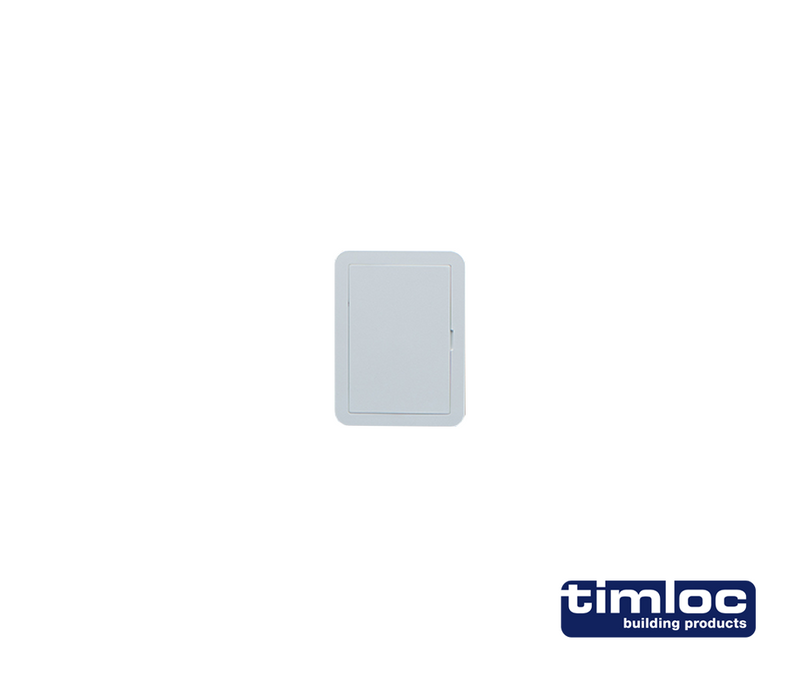

| 115 x 165mm | 100 x 150mm | 135 x 185mm | Clip fit | AP110AT |

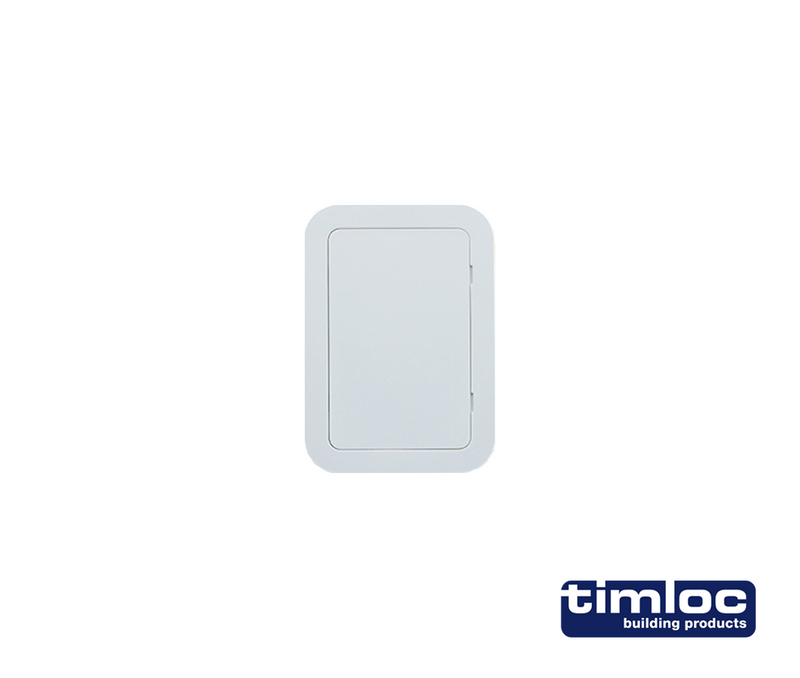

| 155 x 235mm | 140 x 220mm | 195 x 275mm | Clip fit | AP150AT |

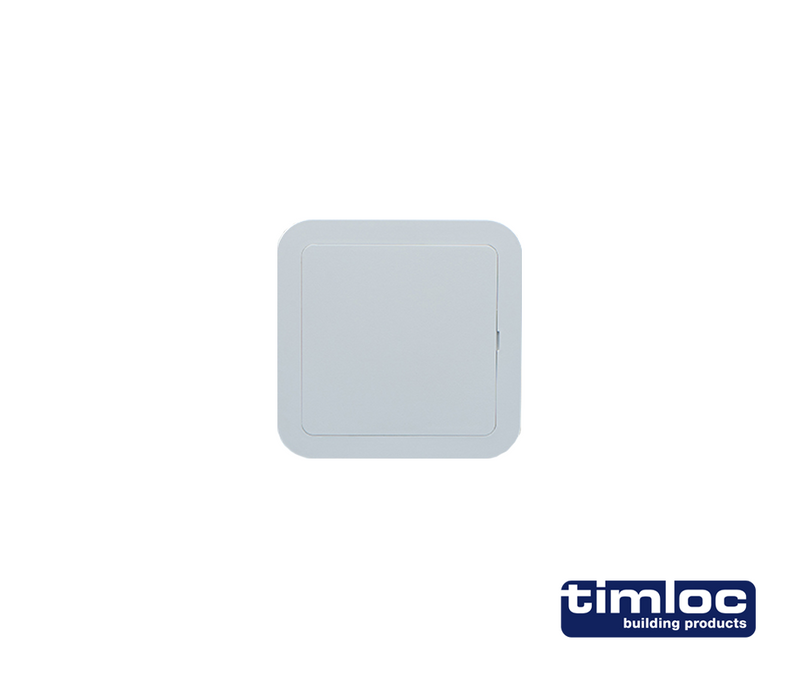

| 205 x 205mm | 190 x 190mm | 245 x 245mm | Clip fit | AP200AT |

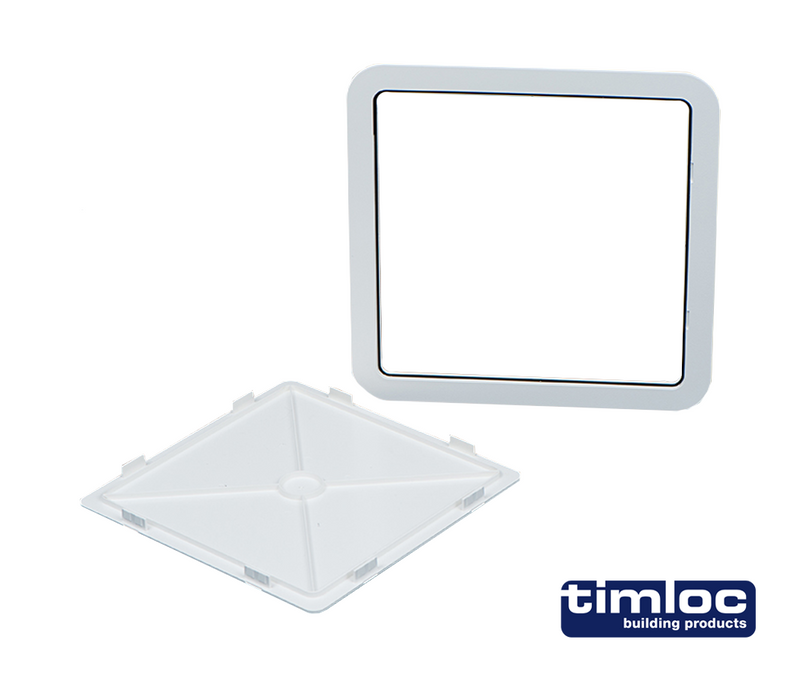

| 305 x 305mm | 290 x 290mm | 345 x 345mm | Clip fit | AP300AT |
| 470 x 470mm | 455 x 455mm | 510 x 510mm | Clip fit | AP450AT |
Fully airtight and high-level acoustic performance plastic access panels for providing access to concealed services and connections behind dry lined walls, ducts, ceilings, and cupboard units.
An economical solution for providing access to concealed services and helping to meet the requirements of:
- Building Regulation Part L – Conservation of Fuel and Power (air leakage)
- Building Regulation Part J – Heat Producing Appliances (concealed boiler flue inspection access)
- Building Regulation Part E – Resistance to Sound
Features a unique integral airtight seal design that reduces the air permeability to 0.00/h.m +50pa, under positive pressure test conditions.
Uses:
- Provides access to services and connections behind dry lined walls, ducts, ceilings and cupboard units
- Complete solution to meet the highest levels of Building Regulation Part L and Building Regulation Part J and the gas safety industry’s concealed boiler flue inspection requirements (non-fire rated applications)
Features and Benefits
- Purpose made product saves time and money compared with traditional joiner–made or steel access doors
- Unique airtight seal design reduces the air permeability to 0.00/h.m at +50pa
- Flush fitting door panels that can be fully removed for maximum access
- Excellent aesthetic appearance and finish
- Textured finish allows painting if required
- Visible picture frame surround smartly conceals cut out edges and contributes to a faster installation
- Universal door handing
- Installed in minutes using basic hand tools and silicon or flexible sealant
- Clip fit door panels with catch clip closing mechanism
- Acoustic performance of 31dB
Quality
- Manufactured to BS EN ISO 9001 and BS EN ISO 14001
-
Helping to meet Building Regulation:
- Document Part J – Concealed Flues in Voids (2010 edition)
- Document Part E – Resistant to Sound (2003 edition)
- Part L1 and L2 – Conservation of Fuel and Power (2013 edition)
Material and Colour
- Tough and UV stabilised injection moulded HIPS/ABS plastic. White finish.
Installation Advice
- Cut hole to size, making sure that it is straight and level.
- Apply silicon or other suitable grade building adhesive to the back of the frame.
- Press the frame firmly into place, checking it is straight and level.
- Do not operate until the adhesive has set completely.
- Simply push the clip fit door panel into the frame.
Care and Maintenance
- Clean using a soft cloth with a mild detergent.
